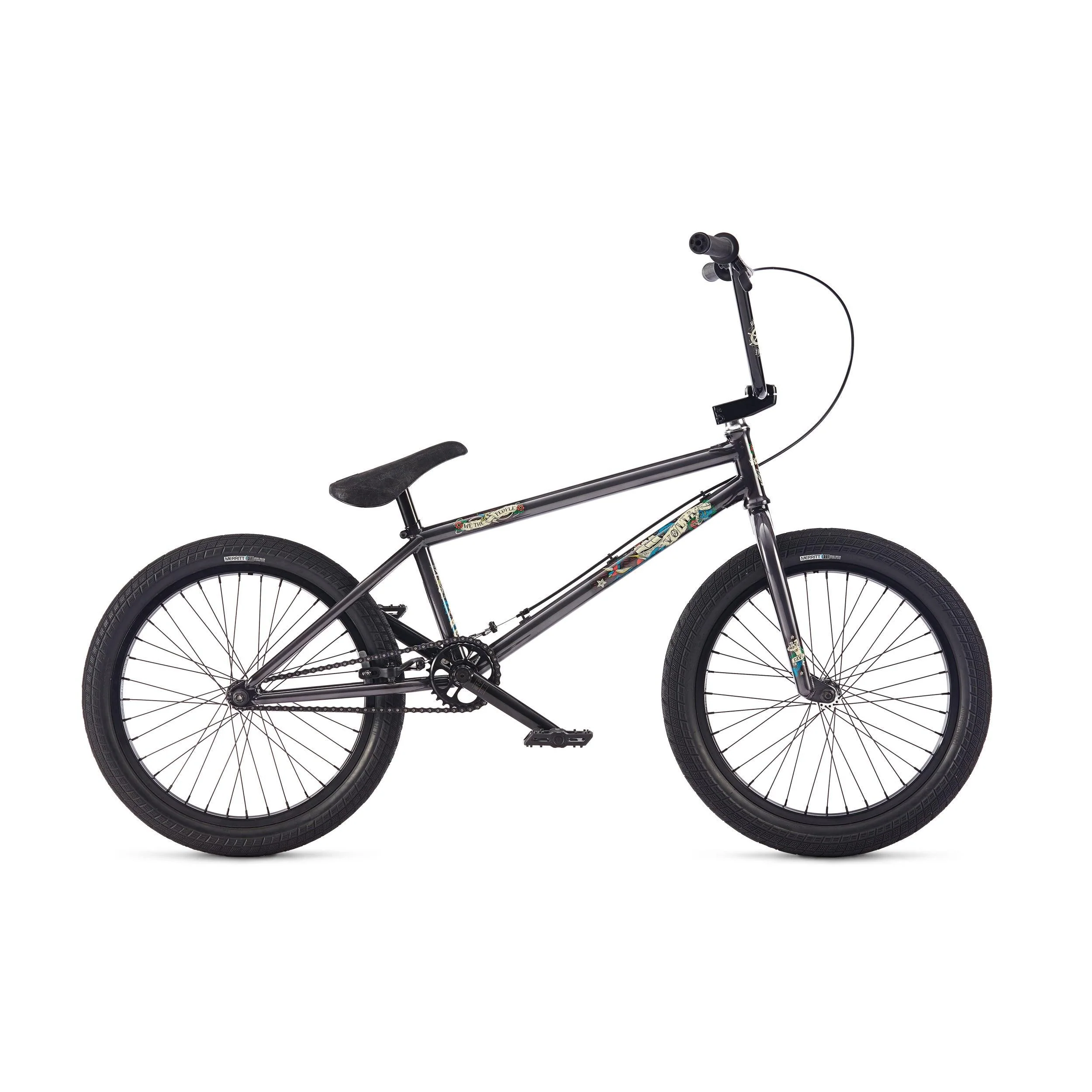

WTP VOLTA 20" 21TT Black (2017)

Product image 1

WTP VOLTA 20" 21TT Black (2017)

The Volta BMX Bike from WTP (We The People) is built on a 20" frame wiith a 21.15" Top Tube. The 2017 model is ideal for trail/dirt riding with its' tailored geometry and components.

FEATURES:

  • 20" BMX Bike
  • Longer 21.15" Top Tube
  • Trails influenced geometry and components
  • Inspired by  the "Patrol" aftermarket line
  • Tattoo themed graphics
  • Full crmo frame, fork and bar
  • Chainstay located removale brake hardware
  • Fully sealed bearing wheels
  • Harder 28-9 gearing
  • Micro dropouts with integrated chain tensioners
  • Trails specific Merritt FT1 Brian Foster tyres
  • Waxed Canvas Tripod seat

SPECIFICATIONS:

FRAME 4130 full sanko, tapered SS & CS, removable pivots & guides, intg. chain tensioner
FORK WETHEPEOPLE  "Volta" fork, butted sanko tubing, cnc steerer, 32mm  dropouts
BARS full 4130 crmo bar
GRIPS WETHEPEOPLE  “Arrow” Vex compound, with flange
STEM WETHEPEOPLE “Patrol” cnc alloy top loading stem, 28mm rise, 53mm reach
HEADSET SALTPLUS “Echo” int. headset, sealed bearing
GYRO  holes for removable gyro tabs
LEVER SALTPLUS “Geo” hinged alloy brake lever
BRAKES SALTPLUS “Moto XL” alloy u-brake rear
CRANKS WETHEPEOPLE “Royal”, tubular 3pc crank crmo, 175mm, 48 spline
BB  SALTPLUS “Echo”, mid 19mm, press fit, sealed bearing
PEDALS  ÉCLAT “CONTRA” nylon/fiberglass pedals, removable pins
CHAIN SALTPLUS “Warlock” half-link chain
SPROCKET WETHEPEOPLE “4Star” 6061-T6 alloy, 28t cnc sprocket
DRIVER 9t, 1pc  cassette driver, full bushing
 FRONT HUB  ÉCLAT “Kolibri ” hub, sb, 3/8"'s axle, 36h
REAR HUB  ÉCLAT “Kolibri” cassette, sb hub, 9t, 14mm axle, 36h
HUB GUARDS -
 FRONT RIM SALTPLUS “Mesa” straight double wall, flash welded  rim, 36h
REAR RIM SALTPLUS “Mesa” straight double wall, flash welded  rim, 36h
SEAT WTP 'Volta" slim padded tripod seat
SEAT POST SALT "AM" alloy tripod post
SEAT CLAMP integrated seat clamp
TIRES MERRITT “Brian Foster FT1” 2.35" front & 2.25" rear
PEGS -
WEIGHT 11.41kg / 25.15lbs (as pictured)



GEOMETRY:

TOP TUBE LENGTH 21.15"
CHAIN STAY LENGTH 13.75"
HEAD TUBE  ANGLE 74.25°
SEAT TUBE ANGLE 71°
BOTTOM BRACKET HEIGHT 11.5"
STAND OVER HEIGHT 9"

BAR RISE 9"
BAR WIDTH 29.5"
BAR BACK SWEEP 12°
BAR UPSWEEP 2°

 AVAILABLE IN-STORE/CLICK & COLLECT
