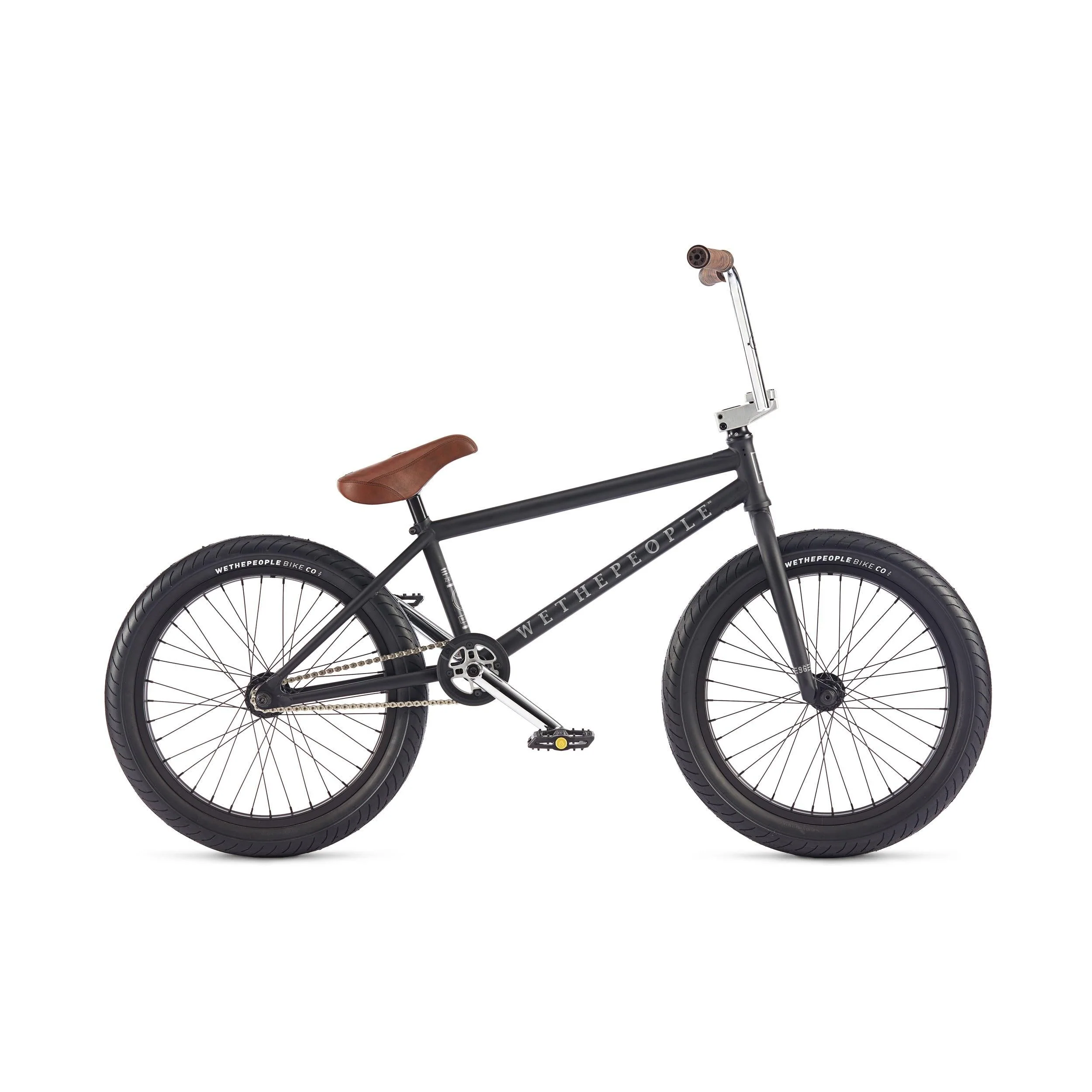

WTP ZODIAC 20" FREECOASTER 20.75TT Black (2017)

Product image 1

WTP ZODIAC 20" FREECOASTER 20.75TT Black (2017)

The Zodiac BMX Bike from WTP (We The People) is built on a 20" frame with a 20.75" Top Tube. The 2017 model features all new WTP Hilt XL grips with WTP Stickin Tyres. The Zodiac is best suited for street racing with a shorter fork offset, cranks and chainstays.

FEATURES:

  • 20" BMX Bike
  • Street inspired geometry with shorter fork offset, cranks and chainstays
  • Full crmo frame, fork and bar
  • 7mm invest cast dropouts and integ. chain tensioners
  • 4pc handlebar
  • Removable brake hardware
  • Fully sealed bearing wheels
  • Saltplus PRO Freecoaster hub, available as RSD or LSD
  • Saltplus PRO Nylon/Fiberglass hub guards
  • Ă©clat Dune stem, Trippin XL rims, Slash pedals
  • Saltplus Elite sprocket with Ă©clat AK Nylon guard

SPECIFICATIONS:

FRAME 4130 full crmo, tapered SS & CS, removable pivots & guides, invest cast dropout with intg. chain tensioner
FORK WETHEPEOPLE  "Zodiac" fork, butted sanko tubing, cnc steerer, 28mm offset, crmo dropouts
BARS full 4130 crmo 4pc bar
GRIPS WETHEPEOPLE  “Hilt XL” Vex compound, flangeless grips
STEM ÉCLAT “Dune” 6061 T6 full cnc, top loading stem, 50mm reach
HEADSET SALTPLUS “Echo” int. headset, sealed bearing
GYRO  holes for removable gyro tabs
LEVER SALTPLUS “Geo” hinged alloy brake lever
BRAKES ÉCLAT "Talon" alloy u-brake-rear
CRANKS SALTPLUS “ELITE” (L&R) tubular 3pc crank crmo 165mm, 48 spline
BB  SALT “Mid” 19mm, press fit, sealed bearing
PEDALS  ÉCLAT “Slash” nylon/fiberglass pedals
CHAIN SALTPLUS “Warlock” half-link chain
SPROCKET SALTPLUS “ELITE" 6061-T6 alloy, 25t cnc sprocket & ÉCLAT "AK" nylon guard
DRIVER 9t, 1pc freecoaster driver, sealed bearing
 FRONT HUB SALTPLUS “Trapez” hub, sb, 3/8"'s female bolts, 36h
REAR HUB SALTPLUS “PRO" freecoaster hub, full sealed, 9t, 14mm axle, 36h
HUB GUARDS SALTPLUS "PRO" Nylon/Fiberglass front & rear hub guards
 FRONT RIM  ÉCLAT “Trippin XL” straight double wall rim, 36h
REAR RIM  ÉCLAT “Trippin XL” straight double wall rim, 36h
SEAT  ÉCLAT “OZ” fat padded pivotal seat
SEAT POST SALT “AM” pivotal seat post, alloy
SEAT CLAMP integrated seat clamp
TIRES WETHEPEOPLE “Stickin” 2.4" front  /  2.3" rear
PEGS -
WEIGHT 12.33kg / 27.20lbs (as pictured)



GEOMETRY:

TOP TUBE LENGTH 20.75"
CHAIN STAY LENGTH 13.2"
HEAD TUBE  ANGLE 75.5°
SEAT TUBE ANGLE 71°
BOTTOM BRACKET HEIGHT 11.75"
STAND OVER HEIGHT 9"

BAR RISE 9"
BAR WIDTH 29.2"
BAR BACK SWEEP 11°
BAR UPSWEEP 3°

AVAILABLE IN-STORE/CLICK & COLLECT
Additional Information on BMX Bikes can be found here

$931.74
